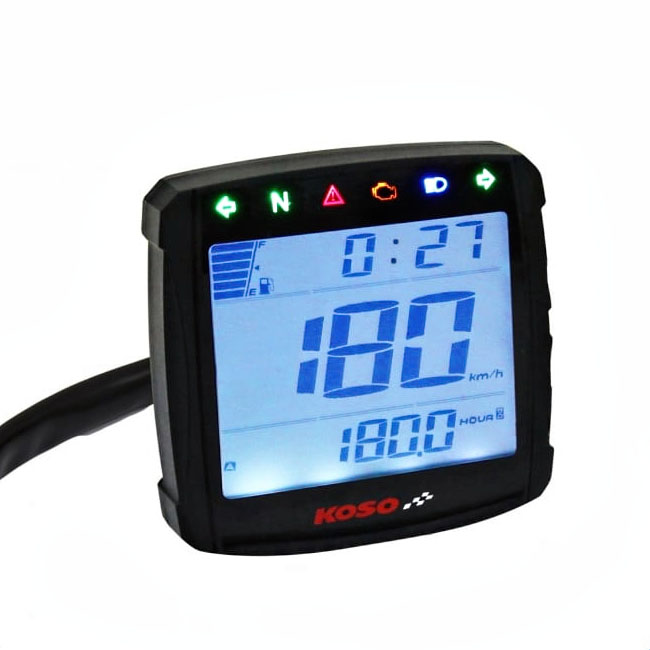

This is the baddest speedo in the business. This KOSO gauge covers more than any we have seen on the market: Kit includes: SPEEDOMETER ODOMETER TRIP A-B HOUR METER OIL MAINTENANCE HOUR METERA-B MAX SPEED RECORD AVERAGE SPEED RECORD TIRE CIRCUMFERENCE FUEL METER (MUST USE HONDA METROPOLITAN FUEL SENDING UNIT) INSUFFICIENT FUEL WARNING VOLTMETER VOLT METER WARNING EFFECTIVE VOLTAGE EFFECTIVE TEMP RANGE BLINKER INDICATOR LIGHT HIGH BEAM LIGHT INDICATOR THIS KIT HAS A 7/8 HANDLEBAR MOUNT INCLUDED. IN ORDER TO USE THE FUEL GAUGE YOU WILL NEED THE HONDA METROPOLITAIN FUEL SENDING UNIT BELOW IN RELATED ITEMS WE ALSO MAKE A VERY CLEAN KOSO HANDLEBAR STEM WORK ON OUR AND PASSWORD JDM STEM. IF YOU ALREADY HAVE A TRS STEM THAT WILL HOLD THIS AND KEEP YOUR HANDLEBARS WITH A CLEAN LOOK THAT WILL BE BELOW AS WELL IN THE RELATED ITEMS. Electrical items are non-returnable, please check photos and specifications before ordering. Please see our Warranty & Return Policy Here’s where we put the bracket. We painted ours black and it’s on a 2 piston caliper your location my vary depending on caliper. Pick up must be close to magnet. If you are not getting MPH flip magnet over. Notice how close pick up is to rotor, make sure pick up aligns with magnet. Pic is rotated for better viewing. Don’t want to mess with Calibrating or Wires Koso Makes a GPS Speed Converter found HERE Wiring diagram on a 49CC Honda Ruckus. KOSO 49cc OEM Wiring Orange —— Orange ( Left Blinker) Blue———–Light Blue ( Right Blinker) Yellow———Blue on headlight harness (High Beam Indicator) Green———Yellow Wire on Met Fuel Sending Unit (fuel level) Red———–positive terminal on Battery (Power) Brown———Red/Green tracer on black relay (keyed power 12V) Black———Ground on battery Speed sensor connector —–plug into KOSO Gray———- gets plugged into OEM high temp light positive on OEM speedo Purple ——- neg on coil NOT used can set maintenance off odometer. White ——NOT USED Have our TRS Billet Handlebars ? Ruckus Adjustable Billet CNC Handlebar with Clip on bars MADE IN USA We have a Mount for this speedo now TRS KOSO XR-01S Mount For Clip On Stem SKU: KOSOMETER 27-5733 Categories: Accessories, Battery box, Electrical, Gy6 150cc, Ruckus Tags: digital speedo, Electrical, Speedo
